CyberPower PR750RTXL2UC Smart App Sinewave UPS Systems
CyberPowerLog in for pricing
(No reviews yet)
Write a Review
CyberPower

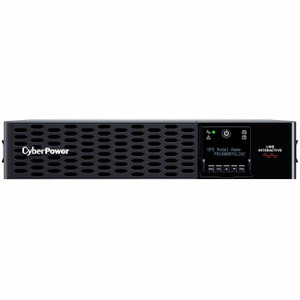

CyberPower PR750RTXL2UC Smart App Sinewave UPS Systems
The PR750RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.
The Smart App Sinewave PR750RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR750RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U01 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoiring.
With a ,400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR750RTXL2UC.
- Capacity: 750 VA / 750 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 100-125 VAC ± 5%
- Runtime (half/full): 28 minutes / 11.3 minutes
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlets: 8 surge + battery backup
- Outlet types: 8 � NEMA 5-15R
- Communication: USB, Serial, SNMP, Relay, EPO, Cloud
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205. Includes built-in cloud
- Warranty: 3 year
- Connected Equipment Guarantee: $400,000
- ENERGY STAR® qualified: Yes
- AVR:
- Yes
- Output Frequency:
- 50 Hz,60 Hz
- Surge Suppression:
- Yes
- Load Capacity (VA):
- 750 VA
- Display:
- LCD
- Battery Size:
- 12V
- Overload Protection:
- Yes
- Battery Characteristics:
- Sealed
- Minimum Operating Temperature:
- 32°F (0°C)
- Input Voltage:
- 120 V AC
- Circuit Breaker:
- Yes
- Replaceable Battery:
- Yes
- Battery Chemistry:
- Lead Acid
- EMI/RFI Noise Filter:
- Yes
- Number of Batteries:
- 4
- Length:
- 22" (558.80 mm)
- Output Power Factor:
- 1
- Product Model:
- PR750RTXL2UC
- Backup/Run Time (Full Load):
- 11.30 Minute
- Thermal Dissipation:
- 34.90 BTU/h
- Environmentally Friendly:
- Yes
- Product Color:
- Black
- Manufacturer Website Address:
- https://www.cyberpowersystems.com/
- Manufacturer:
- CyberPower Systems, Inc
- Serial Port:
- Yes
- USB:
- Yes
- Receptacle Type:
- NEMA 5-15R
- Hot Swappable:
- Yes
- Plug/Connector Type:
- NEMA 5-15P
- Product Type:
- Line-interactive UPS
- Country of Origin:
- China
- Number of Battery & Surge Outlets:
- 8
- Receptacle Detail:
- 8 x NEMA 5-15R
- Waveform Type:
- Sine Wave
- Typical Battery Recharge Time:
- 3 Hour
- Network Management:
- SNMP/HTTP Remote Monitoring,Relay-MS Card,Dry Contact
- Storage Temperature:
- 5°F (-15°C) - 113°F (45°C)
- Battery Capacity:
- 7000 mAh
- Operating Humidity:
- 0% - 95%
- Maximum Operating Elevation:
- 9842.52 ft (3000000 mm)
- USB (HID Compliant) Port:
- Yes
- EPO Port:
- Yes
- Load Capacity (Watt):
- 750 W
- Backup/Run Time (Half Load):
- 28 Minute
- Product Line:
- Smart App Sinewave
- Output Voltage:
- 100 V AC,110 V AC,120 V AC,125 V AC
- Surge Energy Rating:
- 2430 J
- Transfer Time:
- 11 ms
- Maximum Storage Elevation:
- 49209.32 ft (14999000 mm)
- Application/Usage:
- Server,Storage Device,VoIP,Network Device,Telecommunication,Equipment,Corporate
- Input Voltage Range:
- 75 V AC - 149 V AC,100 V AC - 125 V AC
- Number of Critical Load Outlets:
- 4
- Energy Saving:
- GreenPower UPS™ Bypass Technology
- Additional Warranty Information:
Connected Equipment Guarantee: Lifetime
- Input Frequency:
- 47 Hz,63 Hz
- Energy Star:
- Yes
- Maximum Operating Temperature:
- 104°F (40°C)
- Limited Warranty:
- 3 Year
- Alarm:
- Battery Mode,Low Battery,Overload,Over-charge,Overheat
- Status Indicators:
LED Indicators:
- Power On
- Line Mode
- Battery Mode
- Fault
- Night Mode
- Wiring Fault
- Rack Height:
- 2U
- Form Factor:
- Rack/Tower
- Cord Length:
- 10 ft (3.05 m)
