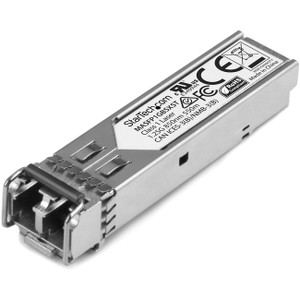

StarTech.com Cisco Meraki MA-SFP-1GB-LX10 Comp. SFP Module - 1000BASE-LX - 1GbE Gigabit Ethernet SFP Single Mode Fiber SMF Optic Transceiver

StarTech.com Cisco Meraki MA-SFP-1GB-LX10 Comp. SFP Module - 1000BASE-LX - 1GbE Gigabit Ethernet SFP Single Mode Fiber SMF Optic Transceiver

StarTech.com
SKU:
5774417
|
UPC:
065030869454
$67.85
$72.99
(You save $5.14 )
(No reviews yet)
Weight:
0.70 KGS
Width:
5.10 (cm)
Height:
0.50 (cm)
Depth:
2.20 (cm)
Current Stock:
Adding to cart… The item has been added
Description
The MASFP1GBLX10 is a Cisco Meraki MA-SFP-1GB-LX10 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (100Mbps) connectivity over fiber cable, for 1000Base-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
  • Wavelength: 1310nm
  • Maximum Data Transfer Rate: 1.25 Gbps
  • Type: Single Mode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 10 km (6.2 mi)
  • MTBF: 3,092,408 hours
  • Power Consumption: Less than 1 Watt
  • Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

More from the Manufacturer

More from the Manufacturer

  • WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
  • OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the module itself, not your equipment; our modules won't void your OEM support and with access to our Tech Advisors 5/24
  • TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
  • TECHNICAL SPECS: 1000BASE-LX
  • 1 Gbps
  • Single Mode (SMF)
  • LC Connector
  • 1310nm
  • Digital Diagnostic Monitoring (DDM)
  • Distances up to 10km (6.2mi)
  • 100% CISCO MERAKI MA-SFP-1GB-LX10 COMPATIBLE: Works with Cisco Meraki switches like MS225, MX400, MS250, MS350, MX84 and others
Additional Information
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Network Technology:
1000Base-LX
Compatibility:
  • MSA Compliant
Cisco Meraki Switches:
  • MS225
  • MX400
  • MS250
  • MS350
  • MX84
Interfaces/Ports Details:
1 x LC Duplex 1000Base-LX Network
Environmentally Friendly:
Yes
Product Type:
SFP (mini-GBIC)
Manufacturer Website Address:
http://www.startech.com
Total Number of Ports:
1
Packaged Quantity:
1 Each
Limited Warranty:
Lifetime
Form Factor:
Hot-pluggable,Hot-swappable
Ethernet Technology:
1.25 Gigabit Ethernet
Application/Usage:
Data Networking,Optical Network
Fiber Mode Supported:
Single-mode
Country of Origin:
China
Media Type Supported:
Optical Fiber
Connector Type:
LC
Manufacturer:
StarTech.com
