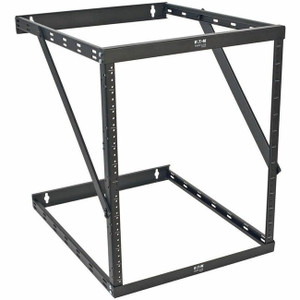

Tripp Lite by Eaton SmartRack SRWO8U22MD Rack Frame

Tripp Lite by Eaton SmartRack SRWO8U22MD Rack Frame

Tripp Lite by Eaton
SKU:
5523786
|
UPC:
037332187413

Log in to view your exclusive pricing.

(No reviews yet)
Current Stock:

This product is currently out of stock. To place an order, please contact us at webstore-support@x10technologies.com. Kindly note that fulfillment may take a minimum of 5 business days.

Special Order
Description
The SRWO8U22MD SmartRack 8U/12U/22U Expandable Very Low-Profile Wall-Mount 2-Post Open-Frame Rack is ideal for storing patch panels and other shallow equipment in secure IT areas with limited floor space. Mounted to the wall or resting on the floor, this rack offers fast, easy access to network components and cabling. It's compatible with EIA-standard 19-inch rack equipment that supports two-post mounting and a maximum mounting depth of 11.5 inches.

Constructed from heavy-duty steel in a durable black powder-coated finish, the open-frame rack has a maximum load capacity of 150 pounds. The expandable design allows you to assemble the rack in an 8U, 12U or 22U configuration to meet your current needs, while leaving rack space in reserve for future expansion. It saves precious space and allows IT managers easy access for organizing, installing and servicing equipment and cabling.

The rack is easy to assemble using the included hardware. The vertical mounting rails have threaded 12-24 holes for securing equipment to the steel frame.

More from the Manufacturer

  • Easy to assemble with included hardware
  • Configures to 8U, 12U or 22U of rack space
  • Heavy-duty steel construction designed to last
  • Secures 19 in. rack equipment up to 11.5 in. deep
  • Maximum load capacity of 150 lb.
Additional Information
Rack Height:
8U
Manufacturer:
Eaton Corporation
Form Factor:
Wall Mountable
Rack Width:
19" (482.60 mm)
Product Type:
Rack Frame
Environmentally Friendly:
Yes
Color Family:
Black
Product Line:
SmartRack
Country of Origin:
China
Product Material:
Steel
Limited Warranty:
5 Year
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Product Model:
SRWO8U22MD
Application/Usage:
Patch Panel
Rack Depth:
11.50" (292.10 mm)
Package Contents:
  • SmartRack SRWO8U22MD Rack Frame
  • 24 x 12-24 Equipment Mounting Screws
  • 16 x M5 Button-Head Cap Screws
  • 8 x M6 x 12 Phillips-Head Screws
  • 2 x Short Vertical Mounting Rails
  • 2 x Long Vertical Mounting Ra
Product Color:
Black Powder Coat
Maximum Weight Capacity:
150 lb (68038.86 g)
Assembly Required:
Yes
Manufacturer Website Address:
http://www.eaton.com/EatonCom/Markets/NorthAmerica
