Tripp Lite NetDirector B020-U08-19-IP Rackmount LCD with KVM - Steel Housing

Tripp Lite NetDirector B020-U08-19-IP Rackmount LCD with KVM - Steel Housing

Tripp Lite by Eaton
SKU:
4627627
|
UPC:
037332152886
$4,119.91
$6,780.80
(You save $2,660.89 )
(No reviews yet)
Weight:
31.00 KGS
Width:
18.90 (cm)
Height:
1.73 (cm)
Depth:
27.00 (cm)
Current Stock:

Sorry, this product is currently out of stock. Please check back later.

Out of Stock
Description

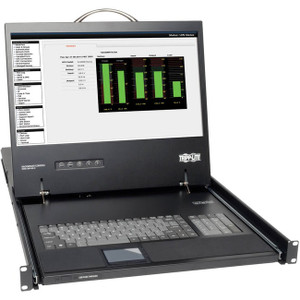

Tripp Lite's B020-U08-19-IP KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, the B020-U08-19-IP can be accessed from any computer on the LAN, WAN or Internet. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers. Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches.

The B020-U08-19-IP has a built-in 19" LCD screen that supports video resolutions up to 1280 x 1024 @ 75Hz, with remote monitor resolutions up to 1600 x 1200 @ 60Hz. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Up to 64 users can be authorized with any combination of admins and users. Multi-level security enhances protection of data and equipment.

This switch controls PS/2 or USB computers/servers using a P778-Series Combo KVM Cable Kit (two cable kits are included). A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.

More from the Manufacturer

  • Compatible with all operating systems
  • Allows up to 64 user accounts, with multi-level security
  • 19" LCD screen supports video resolutions up to 1280 x 1024
  • Control computers/servers locally or via LAN, WAN or Internet
  • Occupies just 1U of space in a rack-mountable drawer
Additional Information
Manufacturer:
Eaton Corporation
Country of Origin:
Taiwan
Rack Height:
1U
Screen Resolution:
1280 x 1024
Screen Mode:
SXGA
Pointing Device Type:
TouchPad
KVM Switch:
Yes
Device Type:
LCD Rack Console
Product Type:
LCD Rack Console
Keyboard:
Yes
Product Line:
NetDirector
KVM Technology:
Digital
Environmentally Friendly:
Yes
Product Color:
Black
Number of Computers Supported:
8
Color Family:
Black
Input Voltage:
120 V AC,230 V AC
Number of USB Ports:
2
TAA Compliant:
Yes
USB:
Yes
Product Material:
Steel
Limited Warranty:
1 Year
Product Model:
B020-U08-19-IP
Package Contents:
  • 8-Port NetDirector 1U Rackmount Console IP KVM Switch w/19" LCD
  • 2 x 6 ft. USB/PS2 Combo KVM Cable Kits
  • USB/PS2 Combo Console Cable Kit
  • Grounding Wire
  • RJ11 to DB9 firmware upgrade cable
  • Rackmount Hardwar
Display Screen Type:
LCD
Screen Size:
19"
Platform Supported:
PC,Mac
Manufacturer Website Address:
http://www.eaton.com/EatonCom/Markets/NorthAmerica
