Tripp Lite PDU1230 PDU Basic 208V / 240V 30A 20 Outlet
Tripp Lite by Eaton
$393.17
$653.03
(You save
$259.86
)
(No reviews yet)
Write a Review
Tripp Lite by Eaton

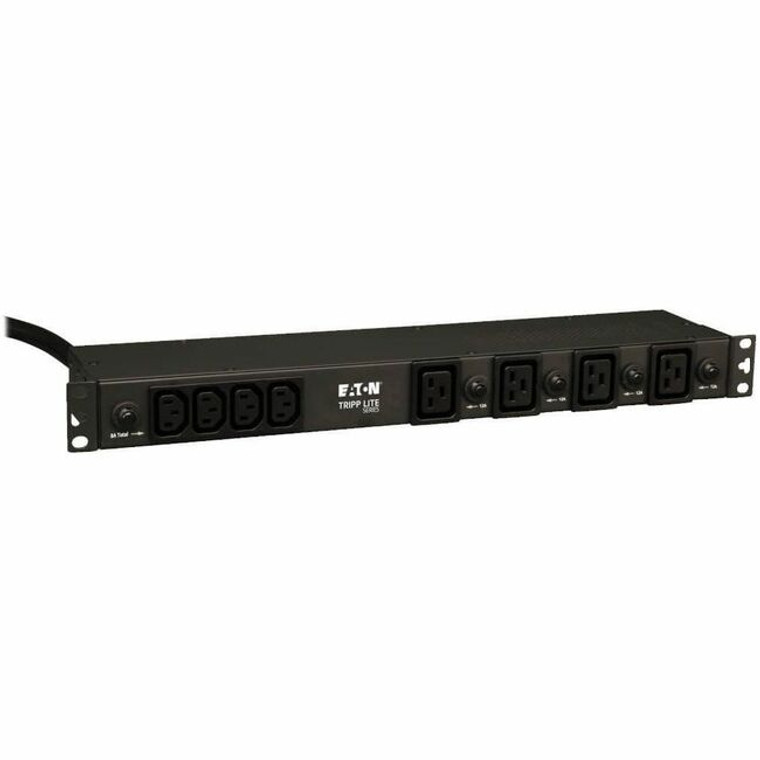

Tripp Lite PDU1230 PDU Basic 208V / 240V 30A 20 Outlet
Tripp Lite's PDU1230 offers 208/240V power distribution with L6-30P input plug, 15-foot cord and 20 total output receptacles. Features 4 front-panel C19 outlets, each protected by separate 15A circuit breakers, 4 front-panel C13 outlets and 12 rear-panel C13 outlets protected in banks of 4 by 4 separate 10A circuit breakers. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19-inch rack, with the potential for 0U vertical mounting in the cable area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 8 front-facing and 12 rear-facing outlets measures only 5.2 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDU1230 ideal for distributing alternate waveform UPS or generator power in rack enclosures.
- 20 outlets (4 C19, 4 C13 front / 12 C13 rear)
- NEMA L6-30P input; 15 ft. / 4.5m line cord
- 1U horizontal rackmount installation
- Basic single phase 30A 208/240V PDU
- Manufacturer:
- Eaton Corporation
- Input Voltage:
- 230 V AC
- Rack Height:
- 1U
- Environmentally Friendly:
- Yes
- Receptacle Detail:
- 20
- Product Model:
- PDU1230
- Package Contents:
- PDU1230 PDU Basic 208V / 240V 30A 20 Outlet
- Instruction Manual with Warranty Information
- Country of Origin:
- China
- Power Rating (VA):
- 4.99 kVA
- Output Voltage:
- 208 V AC,240 V AC
- Limited Warranty:
- 5 Year
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Mounting Orientation:
- Vertical
- Input Voltage Range:
- 208 V AC - 240 V AC
- Plug/Connector Type:
- NEMA L6-30P
- Manufacturer Website Address:
- http://www.eaton.com/EatonCom/Markets/NorthAmerica
- PDU Type:
- Basic
- Product Type:
- PDU
- Mount Type:
- Rack-mountable
