Tripp Lite PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet

Tripp Lite PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet

Tripp Lite by Eaton
SKU:
4376048
|
UPC:
037332139351

Log in to view your exclusive pricing.

(No reviews yet)
Current Stock:

This product is currently out of stock. To place an order, please contact us at webstore-support@x10technologies.com. Kindly note that fulfillment may take a minimum of 5 business days.

Special Order
Description

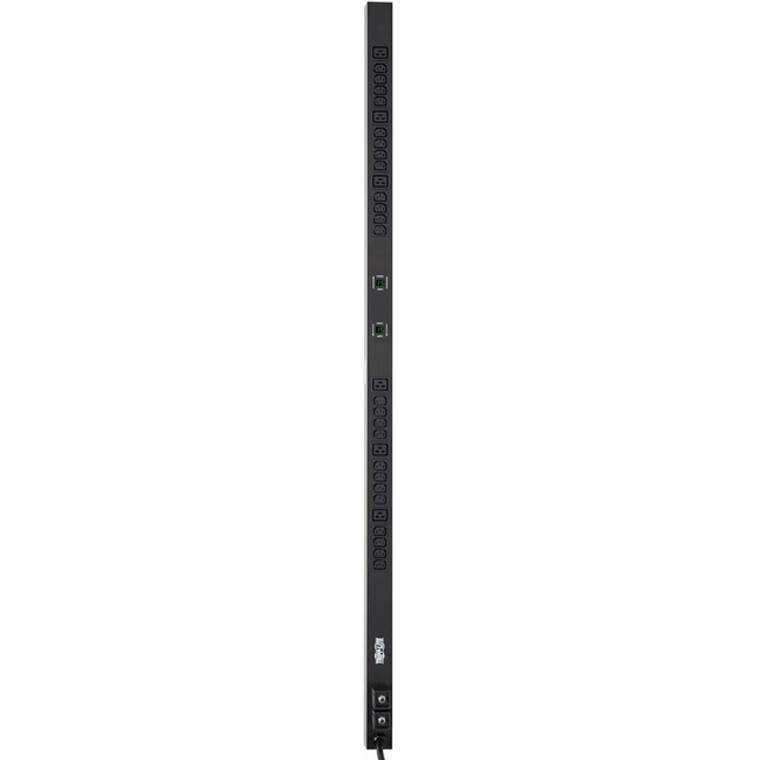

PDUMV30HV 63.75 in. vertical 0U metered rack PDU supports 30A maximum capacity at 208/240V. Includes 10 ft attached line cord with L6-30P input plug. 24 C13 and 6 C19 outlets support up to 30 directly connected pieces of networking equipment. Outlets are arranged in two separately metered and breakered 15A load banks (each with 3 C19 and 12 C13 outlets). Set of 2 built-in 2 character displays offer continuous information on PDU power consumption for each of the two built-in loading banks. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.

More from the Manufacturer

  • 30 outlets (6 C19, 24 C13) in two separately breakered load banks
  • Attached 10ft / 3m cord with NEMA L6-30P input plug
  • Pair of digital meters report output current in amps for each load bank
  • Metered single phase 30A 208/240V, 0U 63.75in / 162cm vertical rackmount PDU
Additional Information
Limited Warranty:
2 Year
Manufacturer:
Eaton Corporation
Input Voltage:
230 V AC
Protection Type:
Overload Protection,Short Circuit Protection
Product Model:
PDUMV30HV
Package Contents:
  • PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet
  • PDUMV30HV 63.75 inch basic PDU with owner's manual
  • Set of 2 bolt-on plug retention brackets and installation hardware
  • Set of mounting brackets and installation hardware
Mount Type:
Wall-mountable,Rack-mountable
Country of Origin:
China
Output Voltage:
208 V AC,240 V AC
Mounting Orientation:
Vertical
Input Voltage Range:
208 V AC - 240 V AC
Receptacle Detail:
6 x IEC 60320 C19,24 x IEC 60320 C13
Plug/Connector Type:
NEMA L6-30P
Receptacle Type:
IEC 60320 C19,IEC 60320 C13
Manufacturer Website Address:
http://www.eaton.com/EatonCom/Markets/NorthAmerica
Product Type:
PDU
