ATEN USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (4K@100m for Single View)

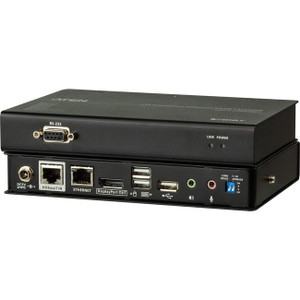

The ATEN CE924 USB DisplayPort Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, and RS-232 signals. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as it provides long-reach capability that extends Full HD 1080P signals up to 150 meters. In addition, CE924 supports single 4K display or dual 1080p display for DisplayPort video output resolution up to 100m by using a single Cat6 / 2L-2910 Cat 6 cable.
With an easy cable installation supporting various signals, the CE924 is ideal for applications where convenient remote access is required - such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
- Allows dual view DisplayPort access to a computer and KVM control from a remote console
- Extends video, audio, USB, and RS-232 signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable
- Supports 4 ports USB 2.0 full speed hub on the receiver-allowing to connect up to 4 various USB 2.0 peripheral
- Long distance with superior video quality
- - HDBaseT™ Standard mode up to 4K @ 100 m (Cat 6 / 6a / 2L-2910); (single view only; dual-view resolution up to 1080P)
- - HDBaseT™ Long-Reach mode up to 1080P @ 150 m (single view only; dual-view resolution up to 720P)
- Environmental Compliance:
- Waste Electrical and Electronic Equipment Directive (WEEE),China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS)
- Maximum Video Resolution:
- 4096 x 2160
- Country of Origin:
- Taiwan
- Graphic Mode:
- 4K
- Device Type:
- KVM Extender
- Manufacturer:
- ATEN Technology, Inc
- Manufacturer Website Address:
- http://www.aten.com/us/en/
- Environmentally Friendly:
- Yes
- USB:
- Yes
- DisplayPort:
- Yes
- Connectivity Technology:
- Wired
- Transmitter Depth:
- 6.86" (174.20 mm)
- Transmitter Weight (Approximate):
- 1.81 lb (820 g)
- Package Contents:
- 1 x CE924L USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Local Unit)
- 1 x CE924R USB DisplayPort Dual View HDBaseT 2.0 KVM Extender (Remote Unit)
- 2 x DisplayPort cables
- 1 x Pink audio jack cable set
- 1
- Receiver Width:
- 6.13" (155.70 mm)
- Product Model:
- CE924
- Receiver Weight (Approximate):
- 1.87 lb (850 g)
- Transmitter Height:
- 1.13" (28.80 mm)
- Transmitter Width:
- 6.07" (154.10 mm)
- Product Type:
- KVM Extender
- Network (RJ-45):
- Yes
- Number of Computers Supported:
- 2
- Maximum Operating Distance:
- 328.08 ft (100000 mm)
- Form Factor:
- Rack-mountable
- Number of USB Ports:
- 5
- Number of Network (RJ-45) Ports:
- 2
- Number of Local Users Supported:
- 2
- Receiver Height:
- 1.13" (28.80 mm)
- Receiver Depth:
- 6.86" (174.20 mm)
