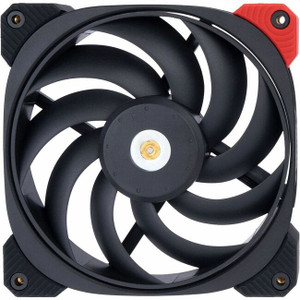

In Win Neptune DN140 PRO Cooling Fan - 1 Pack

In Win Neptune DN140 PRO Cooling Fan - 1 Pack

In Win
SKU:
280477
$26.11
$33.24
(You save $7.13 )
(No reviews yet)
Current Stock:

This product is currently out of stock. To place an order, please contact us at webstore-support@x10technologies.com. Kindly note that fulfillment may take a minimum of 5 business days.

Special Order
Description

Cool Like Neptune

The Neptune DN PRO fans revolutionize the industry's thermal approach by integrating the specialized aerodynamic blade design. These fans balance cooling performance and acoustic suppression. Get ready to experience pro grade cooling!

Bested the Tested

The Neptune fans underwent rigorous testing, fortifying a strong pressure-to-airflow P-Q curve. The critical middle section indicates that the Neptune fans possess high static pressure and airflow that outperforms the competition.

True Air Benders

Besides enhancing speed, the Neptune series creates a more balanced performance, which includes reducing noise. Turbulence, resonance, and pitch from air dispersal were all taken into consideration. InWin dissected the fan's anatomy to produce these silent high static-pressure fans.

Aerodynamic Aesthetics

  • Turbine Blade Design
  • Ahead of the Curve
  • Double Dynamic Balance

Remarkable Ingenuity

  • Three-Phase Motor
  • Metal Magnetic Shield
  • FDB with Copper Bearing Shield
  • IC-Enhanced PWM Precision
  • Heavy-duty fan shroud ensures safe operation
  • Features fluid dynamic bearing to improve longevity, silence, and stability
Additional Information
Maximum Air Pressure:
2.95mmH2O
Maximum Airflow:
91.66 CFM (155.73m�/h)
Minimum Airflow:
43.74 CFM (74.31m�/h)
Product Material:
Polybutylene Terephthalate (PBT),Silicon
Connectors:
4-Pin (12V, PWM)
Product Model:
Neptune DN140 PRO
Product Type:
Cooling Fan
Package Contents:
  • Neptune DN140 PRO Cooling Fan
  • Customized Radiator Screws
Rated Current:
160 mA
Noise Levels (A-Weighted):
24 dB(A)
Fan Height:
5.51" (140 mm)
Fan Width:
5.51" (140 mm)
Maximum Fan Diameter:
5.51" (140 mm)
Fan Depth:
0.98" (25 mm)
Fan Life:
6.8 Year
Fan Bearing Type:
Fluid Dynamic Bearing
Number of Fans:
1
Fan Speed (Max):
1800 rpm
Product Color:
Black
Color Family:
Black
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Packaged Quantity:
1
Manufacturer:
In Win Development, Inc
Manufacturer Website Address:
http://www.in-win.us
Fan Speed (Min):
900 rpm
Limited Warranty:
6 Year
