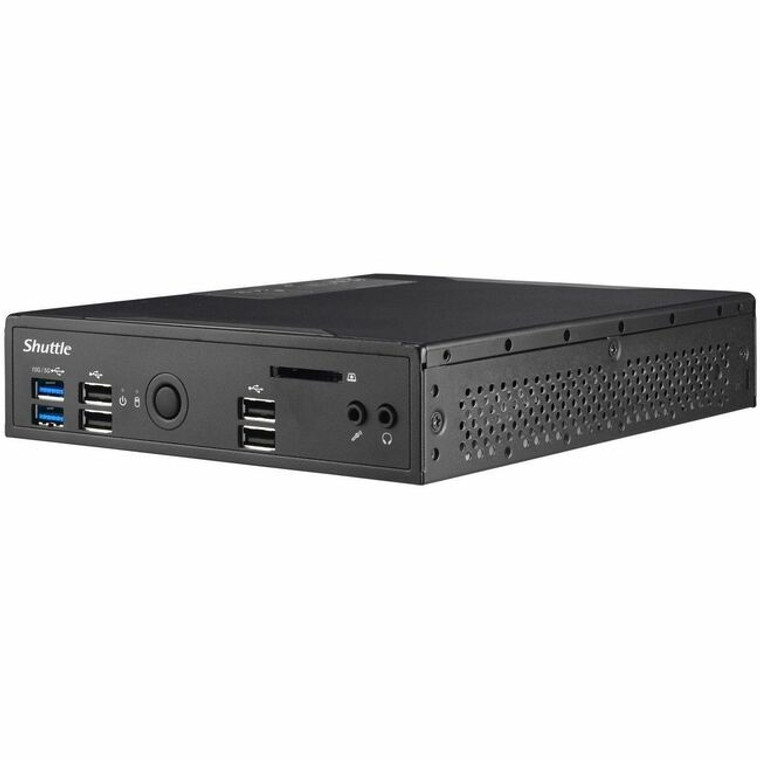

Shuttle XPC slim DS20UV2 Barebone System - Slim PC - Socket BGA-1528 - 1 x Processor Support - Intel Celeron 5205U 1.90 GHz Dual-core (2 Core)

Shuttle XPC slim DS20UV2 Barebone System - Slim PC - Socket BGA-1528 - 1 x Processor Support - Intel Celeron 5205U 1.90 GHz Dual-core (2 Core)

Shuttle
SKU:
291065
|
UPC:
887993005331
$407.78
$570.89
(You save $163.11 )
(No reviews yet)
Weight:
3.31 KGS
Width:
6.50 (cm)
Height:
1.56 (cm)
Depth:
7.87 (cm)
Current Stock:

Sorry, this product is currently out of stock. Please check back later.

Out of Stock
Description

FANLESS SLIMPC WITH A COMET-LAKE-U PROCESSOR IN INDUSTRIAL DESIGN

The DS20UV2-series is a fanless slim PC with a robust 1.3-litre metal chassis and excep- tional connectivity. It supports two digital video outputs for UHD/4K displays and one tra- ditional D-Sub/VGA connector. The built-in Intel "Comet-Lake-U" processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two memory modules, one 2.5" drive and an M.2-2280 SSD card. Optionally, an LTE module can be fitted in the 2,5" bay using the WWN03 accessory. Thanks to its passive cooling, the system is virtually maintenance- free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS20UV2-series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.

  • DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
  • Featuring Gigabit Ethernet port for ultra-fast network speeds
  • With 9 USB ports, connect/disconnect devices while not having to shut down the system
  • With Serial ATA/600 interface get superb reliability and high-speed data transfer
Additional Information
Maximum Memory Supported:
64 GB
Graphics Memory Technology:
DDR4 SDRAM
Product Type:
Barebone System
Graphics Controller Model:
UHD Graphics
Memory Standard:
DDR4-3200/PC4-25600
Number of Processors Supported:
1
Memory Technology:
DDR4 SDRAM
Chipset Manufacturer:
Intel
Processor Type:
Celeron
Ethernet Technology:
Gigabit Ethernet
Processor Model:
5205U
Manufacturer:
Shuttle, Inc
Processor Socket:
Socket BGA-1528
Product Color:
Black
Number of USB 3.2 Gen 1 Ports:
4
Manufacturer Website Address:
http://www.shuttle.com
Operating System Supported:
Windows 10 x64,Windows 11 x64,Linux
Color Family:
Black
Input Voltage:
120 V AC,230 V AC
Processor Manufacturer:
Intel
Graphics Controller Manufacturer:
Intel
Graphics Memory Accessibility:
Shared
Number of VGA Ports:
1
Processor Speed:
1.90 GHz
Number of Onboard USB 2.0 Ports:
1
64-bit Processing:
Yes
Processor Core:
Dual-core (2 Core)
Maximum Power Supply Wattage:
65 W
Number of Total Expansion Bays:
1
HDMI (Rear):
Yes
Controller Type:
Serial ATA/600,NVMe
Total Number of USB Ports:
9
Network (RJ-45):
Yes
Product Line:
XPC slim
Form Factor:
Slim PC
Energy Star:
Yes
Number of Network (RJ-45) Ports:
2
Product Model:
DS20UV2
