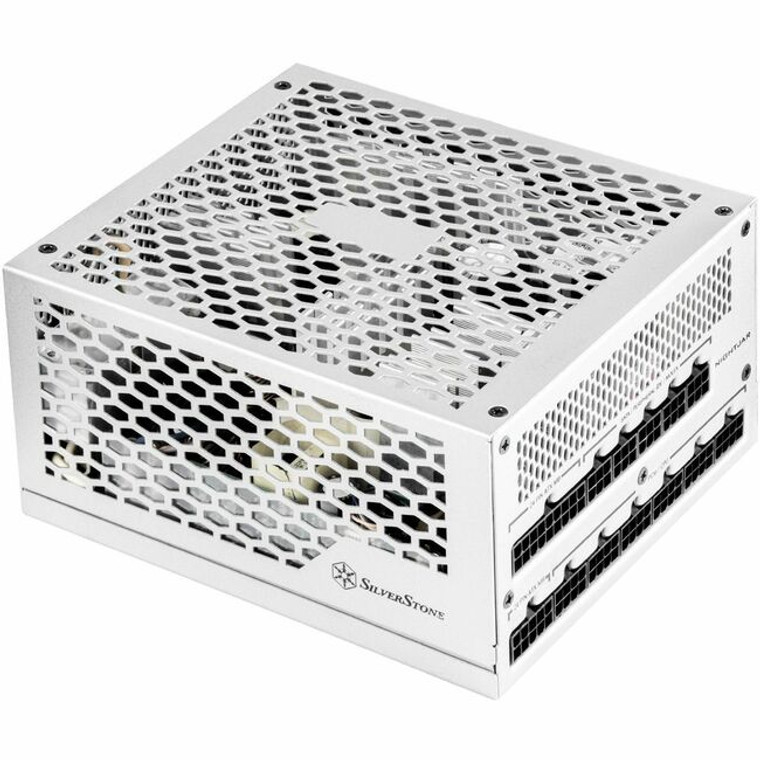

SilverStone SST-NJ700 700W Power Supply

SilverStone SST-NJ700 700W Power Supply

SilverStone
SKU:
280612
|
UPC:
844761020385

Log in to view your exclusive pricing.

(No reviews yet)
Current Stock:

This product is currently out of stock. To place an order, please contact us at webstore-support@x10technologies.com. Kindly note that fulfillment may take a minimum of 5 business days.

Special Order
Description

Designed for 80 PLUS Titanium level of efficiency to reduce wasted heat and save on electricity

100% modular cable design for easy removal in a case with cable routed and tied down

±2% regulation and low ripple & noise performance for high stability

Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking

All Japanese capacitors

Fan-less thermal solution 0 dBA acoustics

Advanced protections for safety and security

  • Over current protection
  • Over power protection
  • Over voltage protection
  • Short circuit protection
  • Over temperature protection
  • Fan-less thermal solution, 0 dBA acoustics
  • High quality construction with all Japanese capacitors
  • 100% modular cables
  • Strict ±2% voltage regulation and low ripple & noise
  • 24/7 continuous power output with 45? operating temperature
  • Class-leading single +12V rail
  • PCI-E 8pin and PCI-E 6pin connectors support
Additional Information
Number of (4+4 pin) CPU Power Connectors:
2
Minimum Operating Temperature:
32°F (0°C)
Input Voltage:
120 V AC,230 V AC
Efficiency:
94%
Maximum Operating Temperature:
113°F (45°C)
Manufacturer:
SilverStone Technology, Inc
Manufacturer Website Address:
http://www.silverstonetek.com
Energy Efficiency Certification:
80 Plus Titanium
Form Factor:
ATX,Internal
Number of (6+2 pin) PCI Express Power Connectors:
4
MTBF:
100000 Hour
PCI Express Connector:
Yes
Number of SATA Power Connectors:
3
Number of Fans:
1
Product Type:
Power Supply
Output Power:
700 W
Number of +12V Rails:
1
Modular:
Yes
Power Factor Correction (PFC):
Active
Color Family:
Silver
Product Color:
Silver
Product Model:
SST-NJ700
Specification Compliance:
ATX12V 2.4
Output Voltage:
3.3 V DC,5 V DC,12 V DC,5 V SB,-12 V DC
Output Voltage Detail:
3.3 V DC @ 20 A,5 V DC @ 20 A,12 V DC @ 58 A,5 V SB @ 2.5 A,-12 V DC @ 0.3 A
Protection Type:
Over Current,Over Power,Short Circuit,Over Voltage,Over Temperature
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Output Current:
20 A,58 A,2.50 A,300 mA
