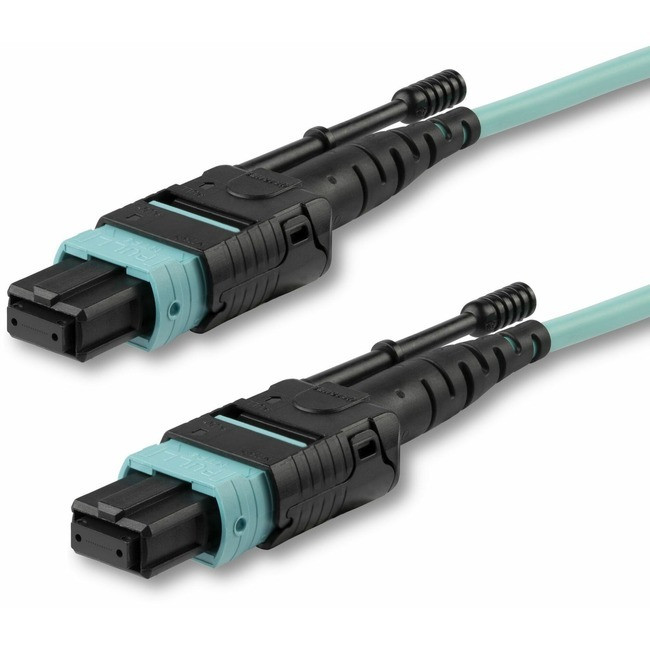

StarTech.com 1m (3ft) MTP(F)/PC OM3 Multimode Fiber Optic Cable, OFNP Plenum, 50/125µm, 40G, Low Insertion Loss, MPO Fiber Jumper Cord

StarTech.com 1m (3ft) MTP(F)/PC OM3 Multimode Fiber Optic Cable, OFNP Plenum, 50/125µm, 40G, Low Insertion Loss, MPO Fiber Jumper Cord

StarTech.com
SKU:
6169319
|
UPC:
0065030879026
$62.40
$67.99
(You save $5.59 )
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description
This MPO/MTP fiber optic cable houses 12 fibers and lets you interface between different networking devices of varying speeds. For example, you can set up a one-to-one connection between two 40Gbps switches or servers. Alternatively, you can connect a 40Gbps switch and break out the 40Gbps into six duplex 10Gbps LC connections on a patch panel or network cassette, which then fans out to individual 10Gbps devices. The MTP connector provides twelve times the density of an SC connector and saves circuit card and rack space. Plus, the push-and-pull tabs optimize accessibility, by letting you install or remove the connectors with one hand without using additional tools. The MTP to MTP cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required. Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag. The MPO12PL1M from StarTech.com is backed by a lifetime warranty. More from the Manufactur
  • Save circuit card and rack space with twelve times the density of SC connectors
  • Get test data for your fiber cable - an insertion loss and return loss test report is included in each cable bag
  • MTP connectors use Type A straight-through pinout
  • Optimize accessibility and install or remove connectors with one hand using the push-and-pull tabs
  • Interface between different networking devices at varying speeds
Additional Information
Jacket Type:
Plenum,OFNP
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Color Family:
Green
Cable Length:
3.3 ft (1 m)
Product Type:
Network Cable
Environmentally Friendly:
Yes
Manufacturer Website Address:
http://www.startech.com
Packaged Quantity:
1 Each
Limited Warranty:
Lifetime
Country of Origin:
China
Manufacturer:
StarTech.com
Fiber Optic Cable Core/Cladding Specification:
50/125 µm
Fiber Optic Mode:
Multi-mode
Product Color:
Aqua
Cable Type:
Fiber Optic
Data Transfer Rate:
40 Gbit/s
Connector Gender on Second End:
Female
Connector Type on Second End:
MTP/MPO Network - Female
Connector on Second End Details:
1 x MTP/MPO Network - Female
Connector Type on First End:
MTP/MPO Network - Female
Connector on First End Details:
1 x MTP/MPO Network - Female
Device Supported:
Patch Panel,Switch,Network Device,Server,Router,Media Converter,Hub
Connector Gender on First End:
Female
